Store solar. Cut bills. Power reliably.

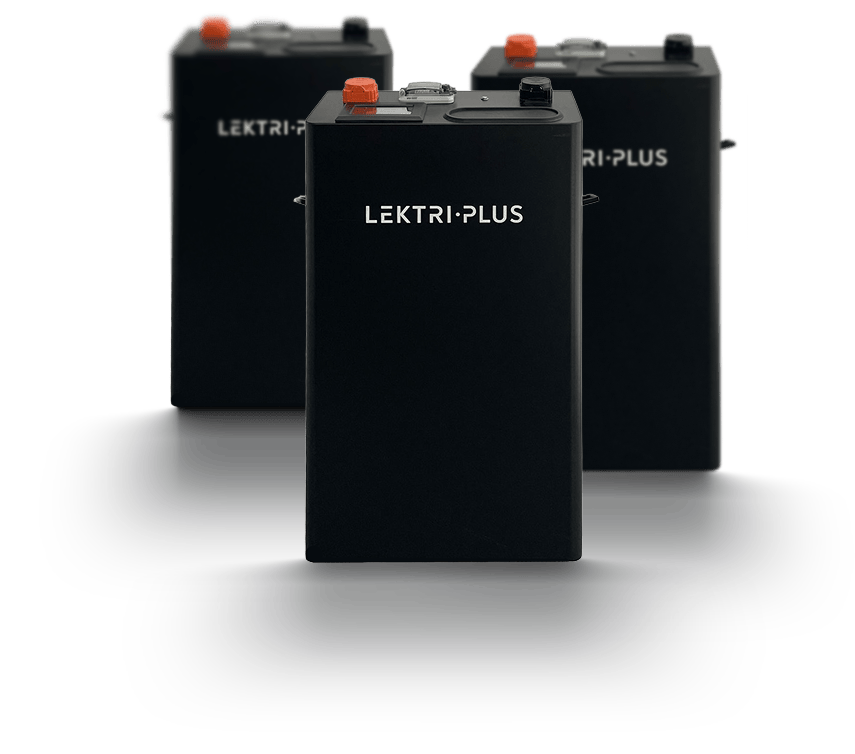

LEKTRI.PLUS is a compact, modular 48 V battery system you can scale from a single pack to a full bank — ideal for PV self-consumption, backup power, and smart energy management.
LEKTRI.PLUS
is a customizable energy storage kit composed of

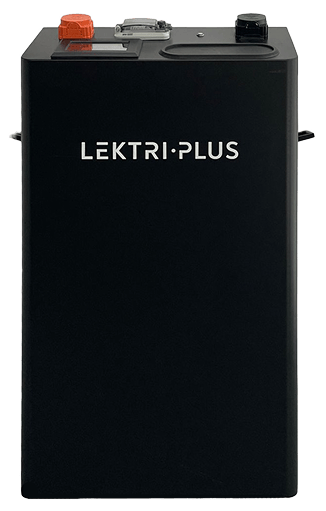

LEKTRI.BOX
A vertical 48 V (16S) battery enclosure with integrated BMS, LCD, terminals, protections and wiring kit.
It’s designed for fast assembly, monitoring and expansion.
TERVOL L16 Cells
Premium LiFePO₄ prismatic cells installed inside the LEKTRI.BOX to achieve the desired capacity.
Use it to
- — Increase PV self-consumption and shift energy to evening/night.
- — Provide backup for critical loads.
- — Build modular storage for small businesses, telecom, cabins, or EV-charging support.
Key Benefits
Scalable from day 1
Start small and expand as needs grow (parallel up to 16 packs; stack up to 4 per base).
Safer chemistry
LiFePO₄ cells (EVE/CATL families) with long cycle life and stable operation.
built-in intelligence
Advanced BMS with cell balancing, temp/current protections, alarms and SoC LEDs.
real-time visibility
PC monitoring software for pack & cell voltages, temperatures, SoC, history logs.
inverter friendly
Pre-programmed CAN/RS485 protocols for leading inverter brands (Victron, GoodWe, Growatt, DEYE, Sofar, SMA, Solis, FoxESS, LuxPower, etc.).
LEKTRI.PLUS ecosystem
LEKTRI.BOX
(battery enclosure with BMS)
TERVOL L16 LiFePO₄ cells
(installed inside LEKTRI.BOX)
48 V / 16S vertical design; includes 48 V 16S BMS, LCD, terminals (P+/P-), busbars, latches, epoxy/EVA insulators, RS485-USB cable and accessories for a clean build.
Designed to fit EVE 280/280K/304 Ah and CATL 280/302 Ah prismatic cells (two 8-cell modules form a 16S pack).
Interfaces: CAN (to inverter), RS485 (pack-to-pack); DIP addressing for master/slave & pack IDs; RUN/ALARM/SOC LEDs.
BMS functions: over-charge/over-discharge/over-current/short-circuit protection, temperature protection, cell balancing.
Grade-A cells; tested cycle life targeting ≥ 6,000 cycles @ 0.5C, 100% DOD, 25 °C to ~80% remaining capacity (indicative).
Configurations
Per pack
48 V (≈ 51.2 V nominal), capacity based on cell selection (e.g., 280–304 Ah class).
Parallel expansion
Up to 16 packs for higher capacity/power; DIP switches set IDs and master/slave roles.
Physical stacking
Up to 4 packs stacked per base for compact footprint; inter-pack cabling provided.
Applications
Single-phase/three-phase hybrid or off-grid inverters; PV storage, peak shaving for small sites, backup.
Tip: combine LEKTRI.PLUS with LEKTRI.CO EV chargers and Energy Management for smart solar charging and load management.
Monitoring & Control
LEKTRI-PLUS Battery Monitor (PC)
Real-time pack and cell voltages, current, temperatures, SoC, historical logs;
Supports multi-pack views via RS485/CAN topology.
Inverter compatibility
Pre-programmed CAN/RS485 profiles for major brands and models:
Model-specific firmware/settings may apply.
Technical Snapshot
System voltage
48 V (16S LiFePO₄; ≈ 51.2 V nominal)
Cell formats supported
EVE 280/280K/304 Ah, CATL 280/302 Ah
BMS options
48 V 16S 100/150/200 A (optional, per build)
Comms
CAN (to inverter), RS485 (pack-to-pack / PC)
Indicators
RUN (green), ALARM (red), 4×SoC LEDs (25% steps)
Parallel packs
Included kit (high level)
System voltage
Enclosure, BMS, LCD, busbars, terminals P+/P-, epoxy/EVA insulation, latches, wiring, RS485-USB
Safety & Handling
Follow the user manual for installation and operation. Ensure correct polarity, proper grounding, avoid short circuits, keep dry/clean, and charge to ≥ 50% SoC for long-term storage. Disconnect terminals before maintenance.
What’s included
Battery case & panels, 48 V 16S BMS, LCD & cabling, terminals, busbars (cell & BMS), insulation materials, latches, screws & hardware, RS485-USB cable — everything required to assemble a clean, serviceable pack with your selected cells.
Have questions?
We’ve got answers.
How many packs can I connect?
Up to 16 in parallel; set IDs via DIP switches (master/slaves).
Can I stack them physically?
Yes, up to 4 packs per base; connect inter-pack cables as shown in the manual.
Which inverters are supported?
Most leading hybrid/off-grid brands via CAN/RS485 profiles (see list above). Model-specific settings may apply.
Do I need a PC to monitor?
Optional but recommended—the LEKTRI-PLUS Battery Monitor provides real-time diagnostics and logs.
Ready to configure your LEKTRI.PLUS system?
Send us your PV size, daily consumption, and backup needs. We’ll size the right pack count, BMS rating, and inverter profile.
